Cosine Joint

Cosine joints are designed to take care of differential wheel movement over the joints. Cosine joints are fitting in medium to heavy class in industrial floor joint segment. These joints are designed to take care of differential movement within concrete mass below the surface of the floor. Its unique system of load transfer and bonding within concrete is integrated for effective performance of abused movement on the floor. Easy installation is the key to better performance of the floor

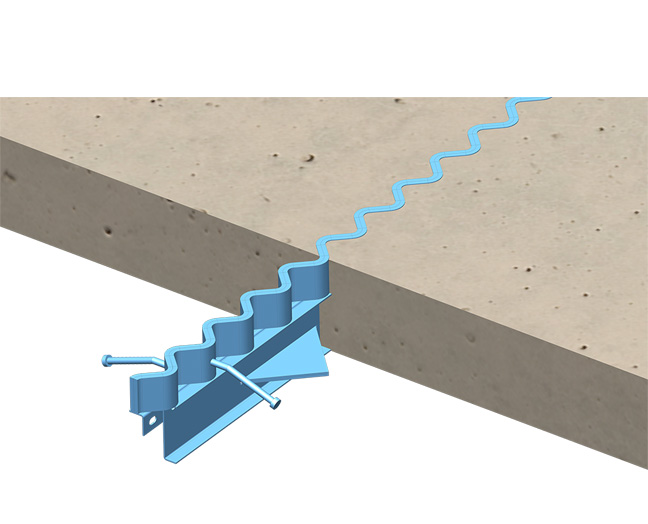

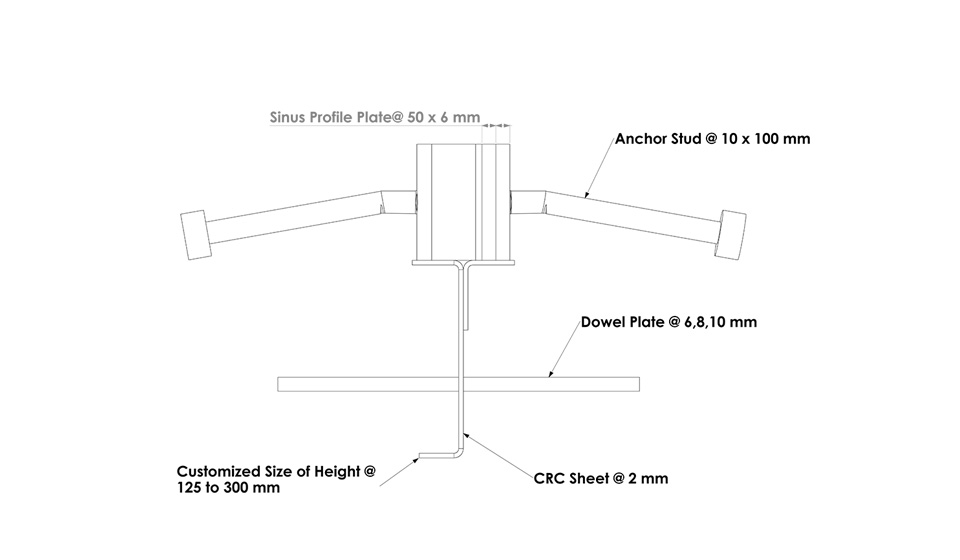

Technical Details of Cosine Joint

Classification	Property	Values
System	Overall Length	2480 mm ± 1mm
	Overall Depth	Fixed Joint Depth: 80 mm to 135 mm
		Adjustable Joint Depth: 135 mm Min. to 175 mm Max..
		175 mm Min. to 225 mm Max.
		205 mm Min. to 280 mm Max.
		Fixed Joint Depth: 280 mm to 375 mm

Joint Arris Armoring	Material	Bright Strip: AISI1020
	Height	50 mm ± 0.5 mm
	Thickness	6 mm ± 0.5 mm
	Straightness	0.5 mm in 1000 mm


Shear Stud Anchor	Material	EN 13918:2007
	Length	100 mm ± 0.5 mm
	Diameter	10 mm ± 0.5 mm

CRC Sheet Steel Formwork	Material	BS EN 1030:2006
	Thickness	2.00 mm ± 0.2 mm

Dowel Plate	Material	BS 43B
	Thickness	6 x 110 x 110 mm ± 0.5 mm
		8 x 110 x 110 mm ± 0.5 mm
		8 x 150 x 150 mm ± 0.5 mm
		8 x 100 x 150 mm ± 0.5 mm
		10 x 100 x 150 mm ± 0.5 mm
	Spacing	495 mm ± 0.5 mm

Sleeve	Material	ABS

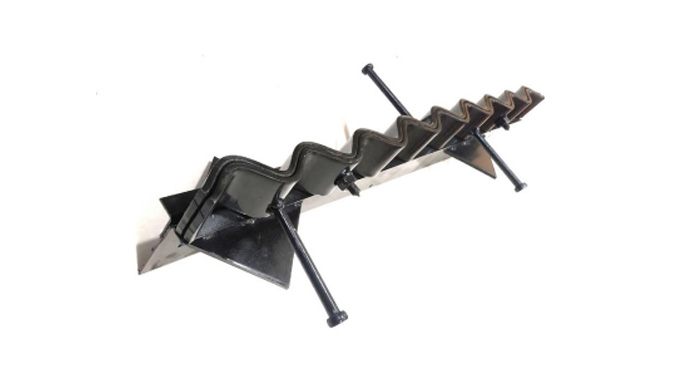

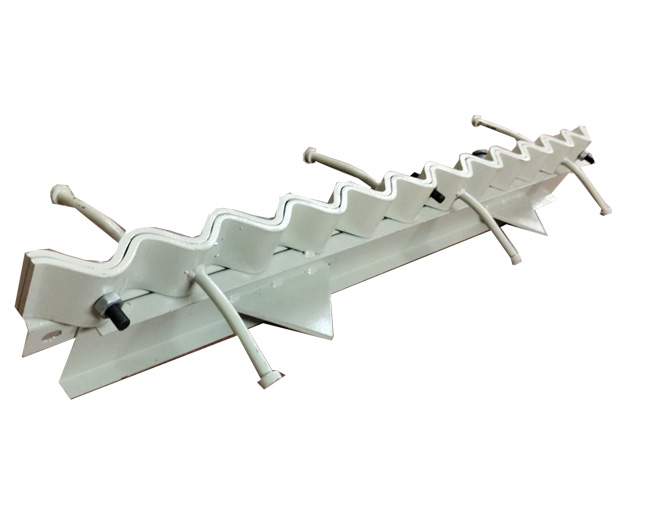

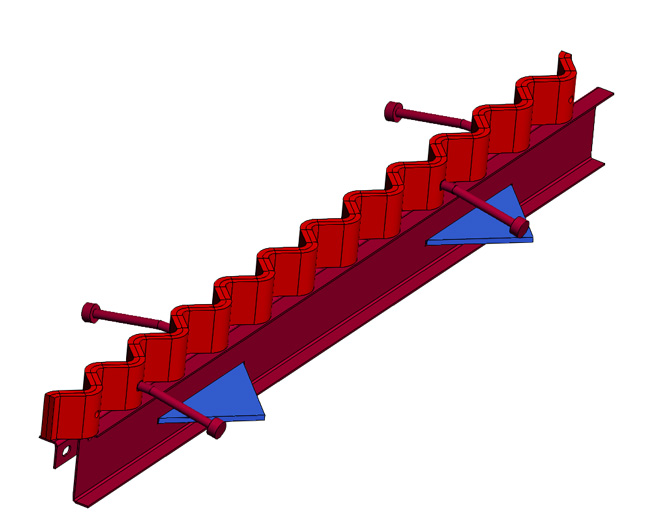

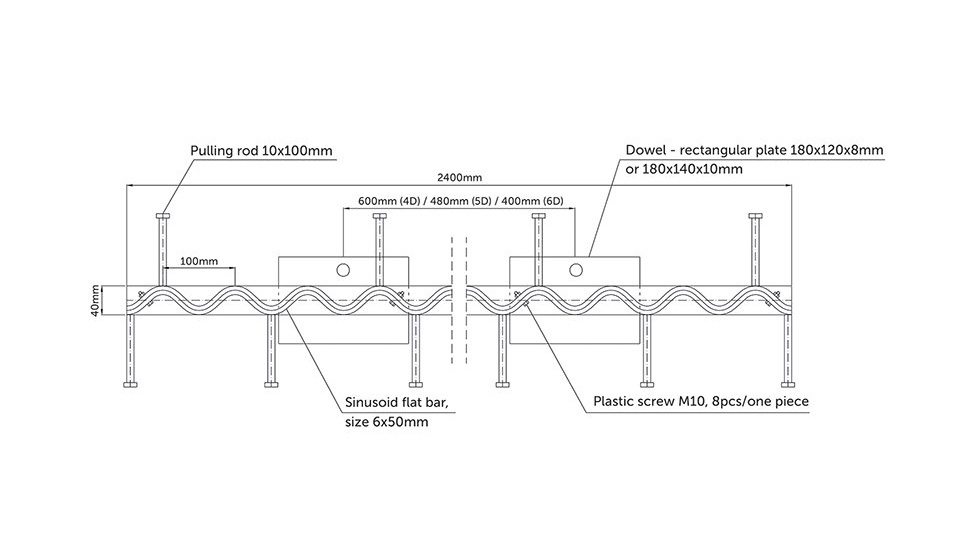

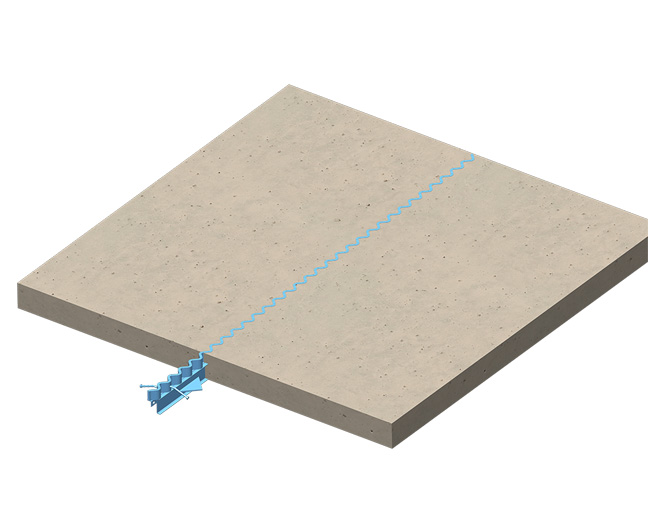

Cosine Joint floorplates

• dowel size 180x120x8mm ±15mm parallel and ±20mm perpendicular
• dowel size 180x140x10mm ±20mm parallel and ±30mm perpendicular

Cosine joint evenly moves tension which gives correct mutual horizontal and side-by-side movements. Another advantage of these joints is easy installation. You just need to put the strip in proper place and anchor it to the ground. Anchoring elements size and shape are designed to give the biggest surface to move the tenses between parts of the floor.

Conecto Cosine system allows for the free movement of forklifts which wheels are particularly damaging for wrong made expansion joints.
